Motor Control Strategies For All-wheel Drive Systems
Modern automotive innovation has made all-wheel drive (AWD) vehicles commonplace because they provide better traction, performance, and safety. The key to maximizing vehicle dynamics is the intelligence underlying power distribution, which is achieved by Motor Control Strategies. This blog investigates:
Motor Control Strategies and AWD system architectures
- How grip and stability are improved by smart controls (such as torque vectoring, limited-slip, and predictive control)
- Real-world applications (such as the Toyota E-Four, BMW xDrive, and Honda SH-AWD)
- Advantages and difficulties
- A thorough table summary
- Frequently Asked Questions
1. Basics of Motor Control Strategies and AWD
In contrast to 2WD systems that are only capable of front- or rear-wheel drive, AWD systems provide power to all four wheels. Intelligent control structures are included into contemporary AWD systems to optimize performance:
- Wheel speed, throttle, steering angle, and yaw rate sensors provide information to
- VCUs (vehicle control units) that determine the ideal torque distribution
- Each axle has a motor or clutch pack that permits longitudinal split (front vs. rear).
- For torque vectoring, lateral split (side-to-side) is made possible by differentials or multi-motor configurations.
In real time, these layered control techniques increase grip and stability by dynamically adjusting to road conditions and driver inputs.

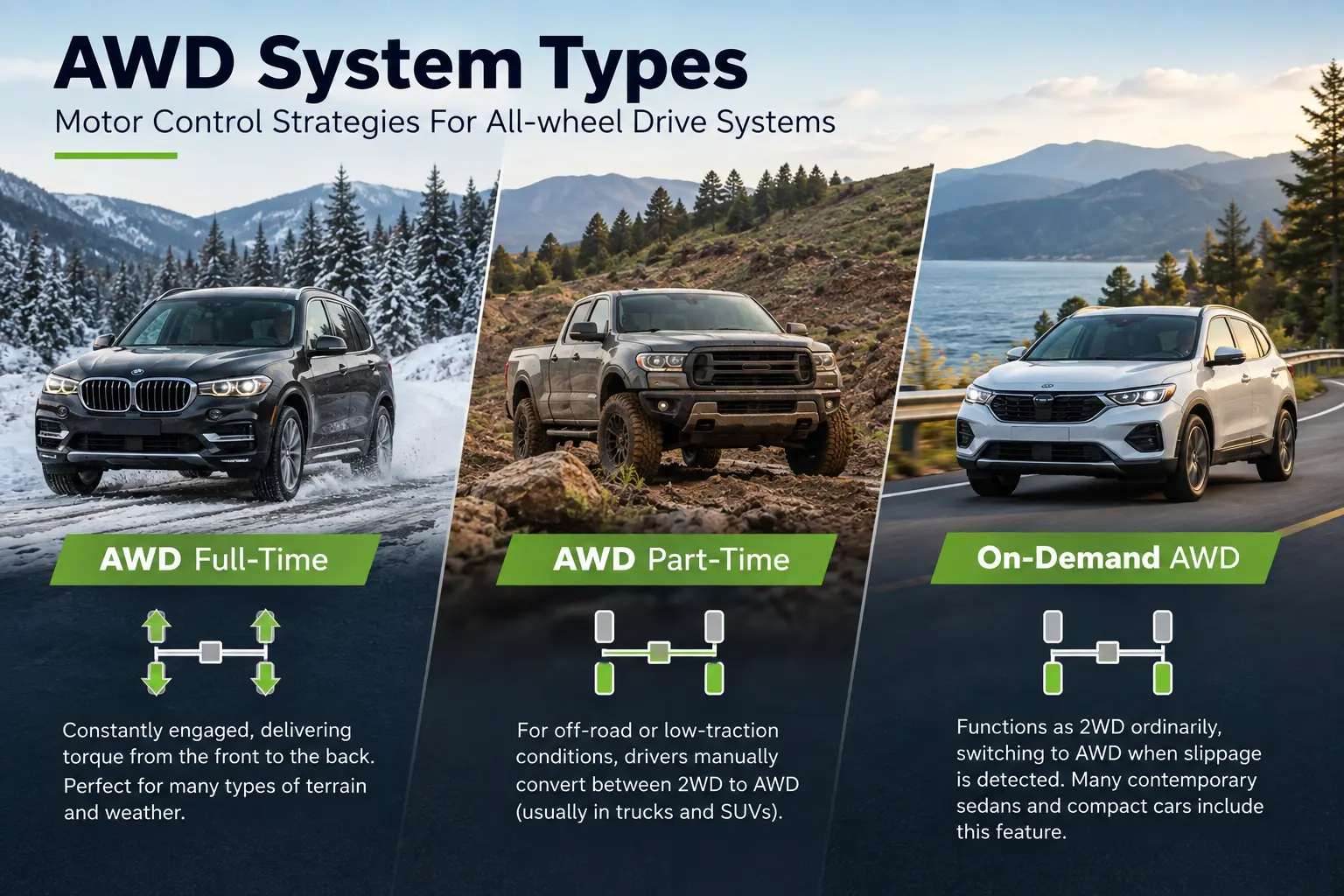

2. AWD System Types
AWD Full-Time
Constantly engaged, delivering torque from the front to the back (e.g. BMW xDrive, Honda SH-AWD). Perfect for many types of terrain and weather.
AWD Part-Time
For off-road or low-traction conditions, drivers manually convert between 2WD to AWD (usually in trucks and SUVs).
On-Demand AWD
Functions as 2WD ordinarily, switching to AWD when slippage is detected. Many contemporary sedans and compact cars (such the Ford Intelligent AWD) include this feature.
3. Motor Control Strategies Used
A. Differentials that are open
The basic AWD method distributes torque uniformly on the front, rear, or side. When one wheel slips, it struggles because the slipping wheel may receive all of the power.
B. LSDs, or limited slip differentials
By permitting torque to move toward the wheel with improved grip, you can increase traction. Electronic LSDs provide real-time flexibility by reacting dynamically to steering, throttle, and wheel speed sensors.
C. Vectoring of Torque
Enables each wheel to have independent torque control. More complex than standard LSD, it eliminates understeer and oversteer and enhances yaw control by applying torque to the outside wheel during a turn.
Examples:
- Honda SH‑AWD (Sport Hybrid): The Honda SH-AWD (Sport Hybrid) can transfer up to 100% of the rear torque to one rear tire to help with cornering and continuously adjusts the front/rear ratio from 70/30 to 30/70.
- BMW xDrive with Dynamic Performance Control (DPC) : distributes torque front-rear and side-side using planetary gears and electronically-actuated clutch packs.
- Toyota E‑Four/AWD‑i: Instead of using a drive shaft to mechanically alter torque, the Toyota E-Four/AWD-i uses a hybrid electric motor at the back.
- GKN Twinster system: The GKN Twinster system, which is utilized in the Ford Focus RS and Range Rover Evoque, provides straightforward yet efficient per-wheel torque regulation by substituting two clutches for the differential.
- Fuzzy Logic / PID Hybrid Controllers: Particularly helpful for slip control in hub-motor EVs are fuzzy logic/PID hybrid controllers. When slip exceeds thresholds, fuzzy logic takes over; otherwise, PID adjusts torque output.
- Optimization Algorithms (e.g. Grey Wolf, CR‑GWO): Optimization algorithms, such as Grey Wolf and CR-GWO, are meta-heuristic techniques used to adjust PID controllers in in-wheel motor electric vehicles (EVs) to increase speed and stability.
4. Advantages of AWD’s Advanced Motor Control Strategies
Better Traction Even in low-friction situations, modern systems retain traction by transferring torque to the wheels with the optimum grip.
- Better Stability & Handling: Torque vectoring reduces understeer and oversteer, tightens cornering response, and corrects yaw.
- Energy Efficiency: In EVs and hybrids, on-demand AWD modes and improved motor coordination minimize wasted energy and increase mileage.The option to choose between modes, such as sport, eco, and off-road, makes flexibility in a variety of driving scenarios possible.
- Better Performance: Studies suggest that torque vectoring reduces lap times by over 4% when compared to fixed splits in high-speed or motoring scenarios via improving traction use.
5. Comparison Table of Major AWD Motor‑Control Systems
| System / Brand | Type | Torque Distribution | Control Strategy | Benefits | Limitations |
|---|---|---|---|---|---|
| Honda SH‑AWD (incl. hybrid) | Full‑time AWD with SH‑AWD | 70/30 → 30/70 front/rear; up to 100% rear wheel | Torque vectoring via rear twin electric motors (hybrid motor) | Excellent cornering, yaw control, smooth transitions | Complex and costly; weight of multi‑motor system |
| BMW xDrive + DPC | Full‑time AWD + DPC | Default 40/60; up to 100% axle; side‑to‑side | Clutch‑pack & planetary gearset vectors torque | Agile handling and traction control | Cost, electronic complexity |
| Toyota E‑Four / AWD‑i | On‑demand hybrid AWD | Electric rear motor variable torque | VCU controls torque to rear based on traction | Efficient, lightweight, hybrid benefits | Rear motor limited to lower-power hybrid outputs |
| GKN Twinster (Ford RS etc.) | Per‑wheel clutch torque control | Independent wheel torque | Clutch-based on each wheel for side-to-side control | Simple, effective, fewer moving parts | Not full torque range front‑rear; moderate capability |
| Generic EV multi‑motor systems | EV with independent motors | Fully independent per-wheel control | MPC, RBCS, fuzzy‑PID, optimization | Peak performance, highest responsiveness | High cost, complex control hardware/software |
6. Real-World Uses & Situations
Snow and Off-Road Conditions
To increase grip in mud, snow, or uneven terrain, adaptive “off-road” or “terrain” modes engage electrical assistance, lock differentials, and switch torque balance.
Driving at High Performance
In performance cars and sports vehicles, torque vectoring is essential. Vehicles such as the Acura NSX, Audi R8, or BMW M models can produce sharper handling and faster departure speeds by moving torque laterally during cornering.
Daily Commuting and Driving
By activating AWD only when the system detects wheel slide—typically in less than 100 ms—on-demand AWD systems provide efficiency and safety while maintaining fuel economy during normal drive.
7. Difficulties & Things to Think About
- Cost and Complexity: The various components required by advanced AWD systems, such as sensors, motors, and actuators, increase the development and production costs.
- Weight Penalty: Adding more engines, clutches, and hardware makes the car heavier, which affects packaging and fuel economy.
- Maintenance & diagnosis: More sensors and more complicated software could result in more expensive maintenance and more complicated service diagnosis.
- Thermal Limits: Since torque vectoring and clutch actuation produce heat, some systems incorporate temperature sensors to prevent overheating.
8. Software Integration, CAN Display, and Dorleco VCU
These cutting-edge tactics can be supported by Dorleco’s CAN control interfaces, CAN Keypads, CAN Display, EV software services, VCU (Vehicle Control Unit) products & Engineering Staffing Services:
- CAN network-based real-time sensor fusion (wheel speeds, yaw, and steering angle)
- Using slip-rate fuzzy-PID, RBCS, or MPC algorithms to control torque distribution logic
- Interfaces like CAN keypads and CAN displays enable driver-selectable modes (sport, eco, and off-road) and torque distribution feedback.
- Integration with multi-motor electric AWD designs is made possible via EV-specific overlays.
Through the integration of sophisticated control logic within its VCU platform, Dorleco empowers manufacturers to implement advanced functionalities such as torque vectoring, adaptive torque distribution, and energy-optimized AWD behavior.
9. Conclusion
Modern AWD systems are powered by Motor Control Strategies that are geared toward efficiency, safety, and agility. They are considerably more than just mechanical links. With the advent of advanced torque vectoring, model predictive control, and open and limited slip differentials, engineers are now able to dynamically adjust torque from front to rear and side to side. Real-world examples of intelligent control’s power include the Twinster from GKN, the xDrive from BMW, the hybrid AWD from Toyota, and the SHAWD from Honda.
The advantages in managing balance, traction, flexibility, and energy optimization are evident, even though complexity and expense continue to be trade-off factors. Torque vectoring tactics will only become more intricate and integrated as EV and hybrid vehicle sizes increase, and software-driven VCU platforms like Dorleco’s are at the forefront of this development.
FAQs
On a single axle, LSD offers a restricted amount of redistribution between wheels. By extending control to all four wheels (as well as side-to-side redistribution), torque vectoring allows for more precise control and better handling.
No, even while performance cars gain the most, systems like Toyota E-Four and Honda SH-AWD give premium sedans and hybrids torque vectoring and effective AWD.
In order to provide electronic control without mechanical links, EV systems frequently employ separate motors per axle—or even each wheel. Slip limitation and energy optimization are key components of the control approach.
By employing AWD only when necessary and striking a balance between efficiency and traction, on-demand and hybrid AWD systems (such as rule-based logic, Toyota’s AWD-i, and Honda hybrid SH-AWD) help save energy.
To keep slip within an ideal range, the system must effectively coordinate traction control and ESC with torque distribution; as a result, it can redirect torque away from spinning wheels.
Because modern electronic AWD systems can react in milliseconds, which is much faster than mechanical systems, they can respond to sudden slip or directional changes.
