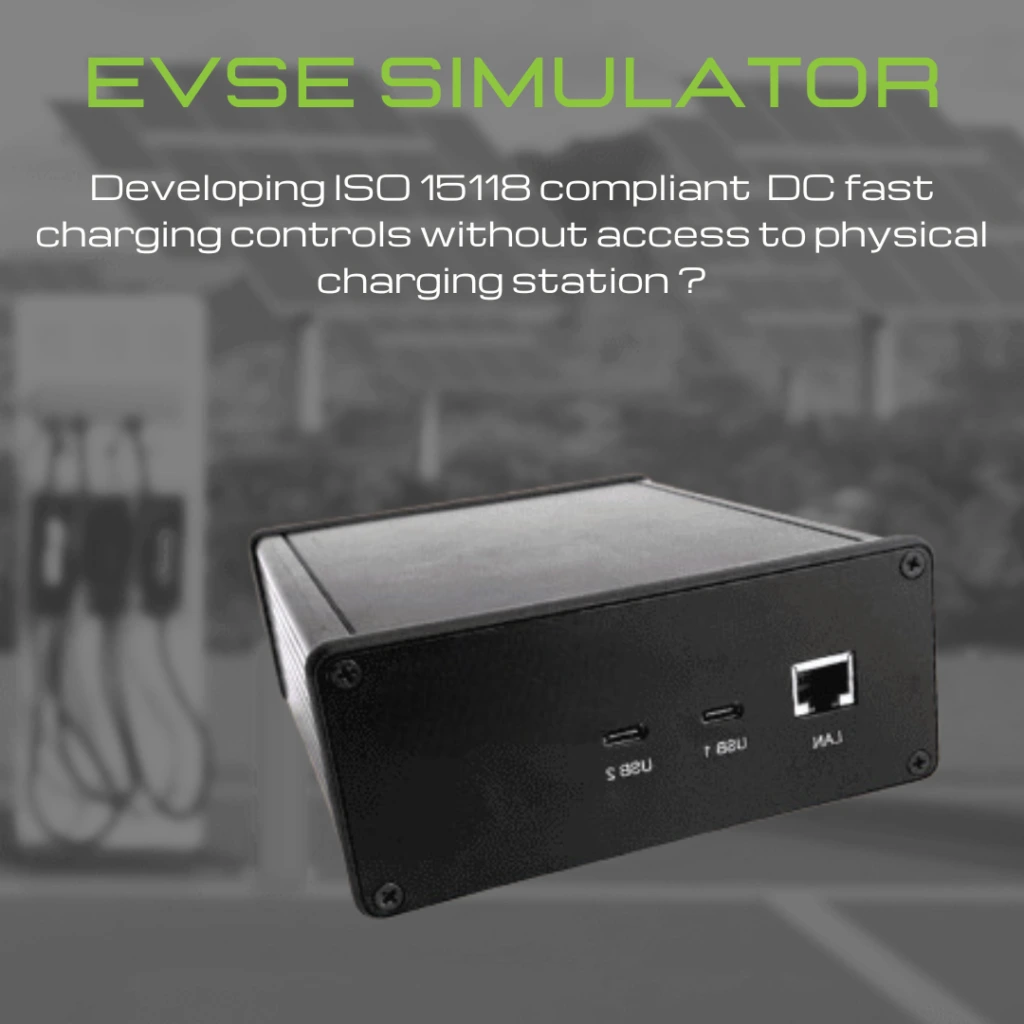

EVSE and V2G Simulator
Developing ISO 15118 compliant DC fast charging controls without access to physical charging station?
EVSE and V2G Simulator
V2G Simulator is the perfect sparring partner for the development, test and analysis of Electric Vehicles and Electric Chargers supporting V2G charging communication by providing an opposing station conforming to the DIN 70121 and ISO/IEC 15118 standard. The simulator takes charge of all protocol layers and creates a standard compliant and most importantly reliable remote station.
The V2G simulator further conforms to the norms by supporting Powerline Communication (HPGP including SLAC) and IEC 61851 Control Pilot (CP) handling (pulse width modulation, voltage reading/control).
- PEV and EVSE simulator available
- ISO/IEC 15118-2 2014 EIM support
- DIN 70121-2012 support
- HPGP interface included
- AC single phase/three phase
- DC core, DC extended
- Mirroring of HPGP traffic to Ethernet
