Transmission Control System
Automobiles are become smarter, more efficient, and more driver friendly as a result of the quick evolution of automotive innovation. The Transmission Control System (TCS), a crucial subsystem that regulates how a car shifts gears to balance power, efficiency, and driving comfort, is one important factor in this development.
To choose the best gear at the appropriate time, modern transmissions must comprehend driver inputs, road conditions, and vehicle load in addition to transferring power from the engine to the wheels. This blog provides a thorough overview for engineers, enthusiasts, and drivers alike by delving into the architecture, types, features, advantages, and difficulties related to gearbox control systems.
A Transmission Control System: What Is It?
A vehicle’s gear shifting is controlled by an integrated mechanical and electronic system called a gearbox control system. It ensures that power is delivered to the wheels effectively under a range of driving conditions.
Previously, the entire process of selecting equipment was done by hand. On the other hand, automated and semi-automated gear shifting based on sensor inputs and set logic has been made possible by advances in vehicle electronics. The TCS assumes complete control over automatic transmissions, making decisions in real time that optimise drivability, performance, and energy savings.
Key Objectives of a Transmission Control System
- Optimize engine performance across speed and torque ranges
- Enhance fuel efficiency by selecting optimal gear ratios
- Smoother driving through smooth gear changes.
- less damage to the drivetrain components.
- support for adaptable behaviour in a variety of scenarios (such as traffic, load, and hill).

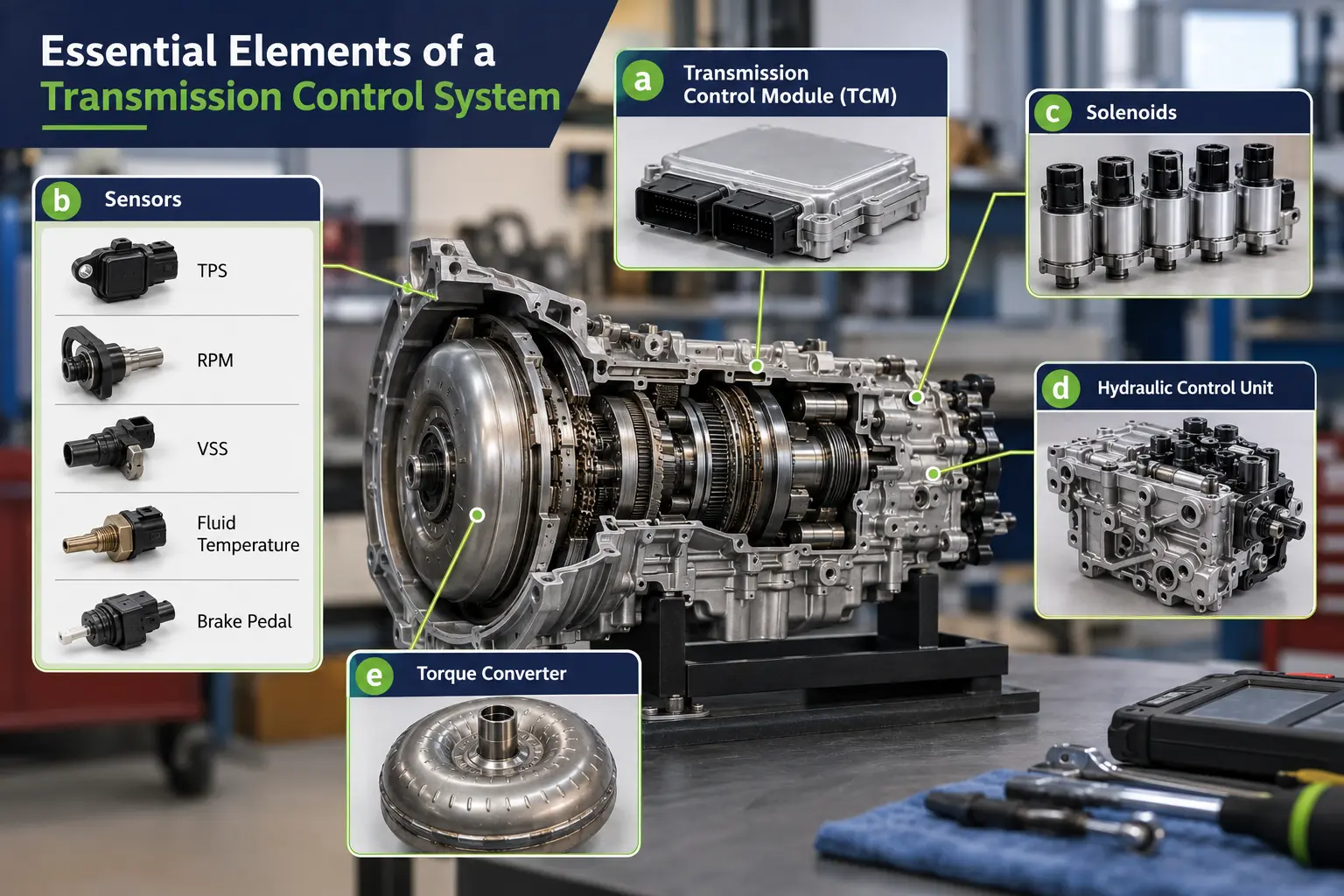

Essential Elements of a Transmission control system Framework
a. Commonly referred to as TCM, the Transmission Control Module (TCM)
An inbuilt computer called the TCM gathers and analyses data to regulate gear shifting. It makes decisions in real time while continuously monitoring sensor inputs.
b. Sensors TCS uses a variety of sensors, such as
The Throttle Position Sensor (TPS) shows the demand from drivers.
Throttle Position Sensor (TPS) – Revolutions per minute are tracked by the engine speed sensor (RPM).
Engine Speed Sensor (RPM) – Wheel speed is measured by the Vehicle Speed Sensor (VSS).
Vehicle Speed Sensor (VSS) – Safe operating conditions are ensured by the gearbox fluid temperature sensor.
Brake Pedal Sensor – When the brakes are applied, the brake pedal sensor detects it.
c. Solenoids:
Gears are enabled or disabled by electromagnetic actuators that control hydraulic pressure inside the gearbox in response to TCM commands.
d. Hydraulic Control Unit
A system of tubes and valves that control the flow of gearbox fluid to engage or disengage clutch packs and gear sets.
e. Torque Converter (for automatics)
A fluid coupling between the engine and transmission allows the car to idle without stalling.

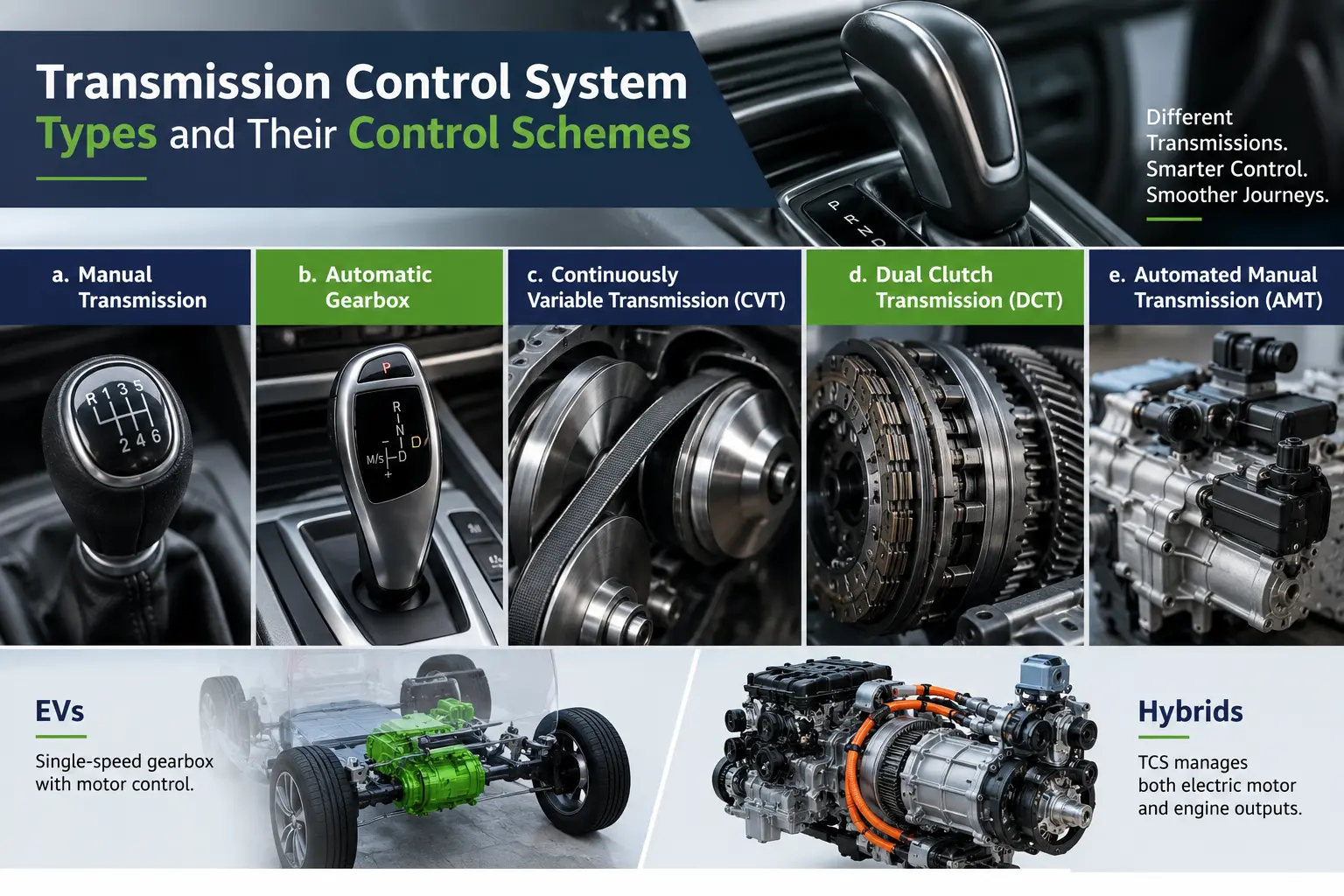

Transmission control system Types and Their Control Schemes
a. Manual Transmission
Involves a manual gear lever and clutch pedal.
In certain semi-manual designs, TCS may offer clutch actuation, hill-start assistance, or shift indicators.
b. Automatic Gearbox
Automatic gear changes are triggered by engine load, speed, and throttle input.
To engage the proper gear sets, TCM regulates solenoids and valves.
c. Continuously Variable Transmission (CVT):
Provides unlimited gear ratios by means of a belt and pulley arrangement. To provide smooth power delivery, TCS continuously modifies pulley sizes.
d. Gearbox with Dual Clutch (DCT)
Specifically, even and odd gears are handled by two clutches.
TCS pre-selects the next gear while the current gear is engaged, resulting in ultra-fast shifts.
e. Manual Transmission Automation (AMT)
Mechanically comparable to manual, but actuators handle clutch and gear control.
In fact, without requiring driver input, TCS automates the shift procedure.
EVs frequently use single-speed gearboxes with motor speed control for transmissions. TCS is necessary for hybrids in order to control the outputs of the electric motor and internal combustion engine.
The Operation of Transmission Control System Procedure in Detail:
- Obtaining Data: Sensors keep an eye on variables including load, speed, throttle position, and braking condition all the time.
- Processing: The TCM employs adaptive logic or pre-programmed algorithms after analysing the data.
- Making Decisions: It chooses the right gear and shift timing based on the driving conditions.
- Execution: To carry out gear changes, the TCM communicates with solenoids and actuators.
- Feedback Loop: They modify shift maps in real time based on post-shift performance monitoring.
Intelligent Control Features in Modern TCS
- Adaptive shifting: modifies the timing of shifts according to learnt driving habits.
- Load Compensation: Modifies the choice of equipment according to the cargo, topography, or towing circumstances.
- Kickdown Function: When you fully depress the accelerator, it downshifts violently.
- Engine Braking: Assists with braking by maintaining gear engagement during deceleration.
In order to ensure safe driving, fail-safe mode restricts gearbox functioning in the event of component failure.
Advantages of Systems for Gearbox Control
a. Fuel Economy
When we optimise shift timing, the engine operates in its most efficient RPM range.
b. More Comfort While Driving
Therefore, continuous clutch and gear operation is no longer necessary with automatic and semi-automatic systems.
c. Improvement in Performance
In addition, rapid and accurate shifts enhance acceleration and torque delivery.
d. Reduced Driver Fatigue
Therefore, continuous clutch and gear operation is no longer necessary with automatic and semi-automatic systems.
e. Impact on the Environment
As a result, improved engine-transmission synchronisation meets emission regulations and decreases CO₂ emissions.
f. System Diagnostics
Moreover, onboard diagnostics (OBD) can identify problems early thanks to built-in fault detection.
Difficulties and Restrictions
a. Cost and Complexity
Consequently, advanced TCSs raise the cost of developing and repairing vehicles.
b. Dependency on Electronics
In certain situations, however, software or sensor issues can potentially cause the gearbox to completely stop functioning.
c. Upkeep
Therefore, reprogramming or repairing a Transmission Control Module (TCM) calls for specific equipment and expertise.
d. Controlling Heat
Electronic components may overheat if they operate for extended periods of time without proper cooling.
d. Limited Control by Hand
On the other hand, fully automated systems could be constrictive and uninteresting to certain drivers.
e. Problems with Compatibility
However, with aftermarket performance parts or tuning, Transmission Control Systems (TCSs) might not operate at their best.

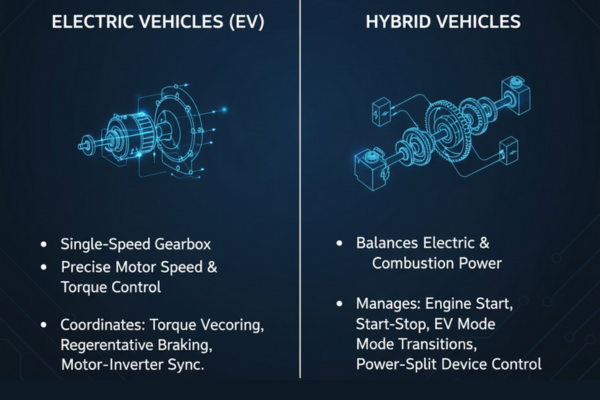

Transmission control system in Electric and Hybrid Vehicles
Consequently, the control of transmissions in electric and hybrid vehicles requires a new strategy.
Although electric vehicles (EVs) rely on precise motor speed and torque control, they typically operate with single-speed gearboxes. This is because EV motors deliver a broad torque range across varying speeds, eliminating the need for multi-speed transmissions.
TCS in EVs handles:
- Vectoring of torque between wheels
- Coordination of regenerative braking
- Motor and inverter synchronisation
Hybrid Vehicles:
As a result, the Transmission Control System (TCS) strikes a balance between electric and combustion power.
- oversees intricate duties like as
- Coordination of engine start/stop
- Transitions to electric-only modes
- Control of a power-split device
Transmission Control System Trends for the Future
a. Machine learning and artificial intelligence (AI)
predictive gear changes according to GPS data, road conditions, and driving patterns.
b. Software-defined TCS can be remotely upgraded via Over-the-Air (OTA) updates to improve performance or address issues.
c. Advanced Driver Assistance System (ADAS) integration
Therefore, to ensure smooth driving, the transmission control system will, in the coming years, increasingly work in tandem with self-driving capabilities.
d. Integration of Vehicles with Everything (V2X)
Moreover, in real time, the gearbox logic adapts dynamically to impending traffic signals, traffic jams, and changing road conditions.
Conclusion
By transferring gear control from the driver’s hands to sophisticated algorithms, gearbox control systems have revolutionised the behaviour of contemporary automobiles. From its modest origins as hydraulic mechanisms to its current state as AI-enabled systems, Transmission control system technology has advanced significantly in terms of performance, safety, drivability, and fuel efficiency.
Their advantages greatly exceed their disadvantages, despite the fact that they add complexity and require constant upkeep. As automotive technology continues to evolve toward electrification, autonomy, and connectivity, transmission control will remain a key enabler. In fact, it well-equips itself to seamlessly adapt to diverse powertrains, varying road conditions, and shifting user expectations.
Key Takeaway: Whether you drive an electric sports vehicle, a hybrid SUV, or a small sedan, behind the scenes, a complex gearbox control system is continuously at work—quietly optimizing every shift and maximizing every second on the road.
