Introduction
Plug-in Hybrid Electric Vehicles (PHEVs): What are they?
Plug-in Hybrid Electric Vehicles is an abbreviation that stands for them. It’s a car featuring an electric drivetrain and an internal combustion (IC) engine. Unlike typical hybrid vehicles, plug-in hybrid electric vehicles (PHEVs) have a larger battery pack that enables them to run at slower speeds exclusively on electricity.
By attaching the battery to an external power source, it can be charged. Regenerative braking or the IC engine both provide additional battery charging. When the car is cruising at a high speed, the internal combustion engine may take over and drive the vehicle. In certain cases, the engine’s efficiency can be raised by the electric motor as well. Similar to a conventional hybrid car, a plug-in hybrid electric vehicle (PHEV) has a bigger battery pack and can run entirely on electricity.
Powered by both a combustion engine and an electric motor
PHEVs are powered by an internal combustion engine in addition to a battery-operated electric motor. PHEVs often have larger battery packs than hybrid cars. This is referred to as the vehicle’s “electric range” and allows an automobile to travel on electricity alone for moderate distances (between 15 and 60+ miles for modern models).
The majority of a plug-in hybrid electric vehicle’s power requirements when traveling in cities can be met by its stored charge. For example, a driver of a light-duty plug-in hybrid electric vehicle (PHEV) can charge their car overnight so they can go anywhere entirely electric the following day, or they might drive to and from work only on electricity. When the car needs heating or air conditioning more than usual, when the battery is almost completely dead, or when the speed is high, the internal combustion engine powers the car.

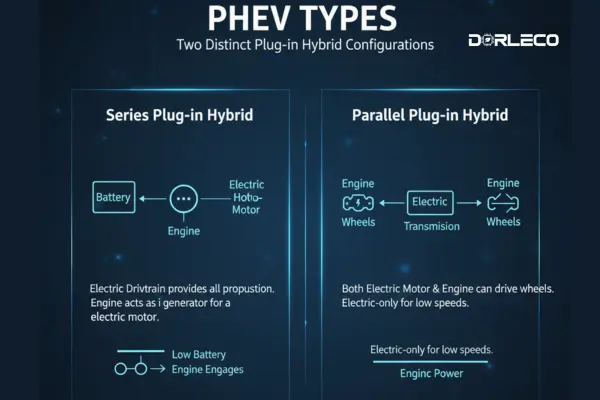

PHEV types
Additionally, plug-in hybrid configurations are available in two separate styles.
- Series plug-in hybrid: In this setup, the car only gets propulsion from its electric drivetrain. Until the battery runs out of juice, the car just uses electricity. The engine runs the electric motor whenever the battery becomes low. For brief excursions and low speeds, the series plug-in hybrid may not require regular fuel.
- Parallel plug-in hybrid: In this setup, the vehicle is driven almost entirely by its electric powertrain in addition to its conventional engine. Usually, when the car is powered purely by electricity, it can only drive slowly.

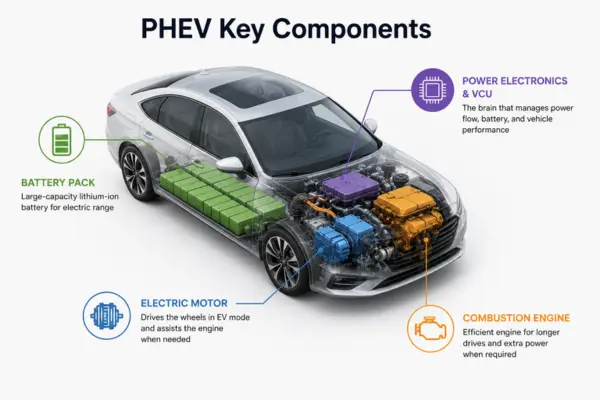

Important parts of the PHEV’s

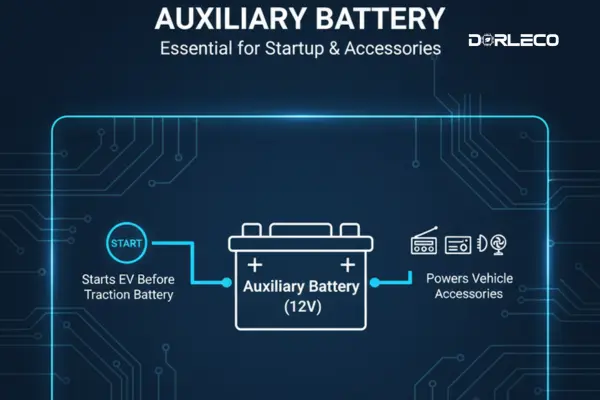

Auxiliary battery this low-voltage battery starts an electric automobile before the traction battery is engaged and provides power to the vehicle’s accessories.
- Charge port: The charge connector allows you to connect the vehicle to an external power source to recharge the traction battery pack.
- Electric generator: This apparatus generates electricity from the brake wheels and feeds it back into the traction battery pack. Some cars have motor generators installed that function as the driving and regeneration units.
- Electric traction motor: This motor uses energy from the traction battery pack to turn the vehicle’s wheels. Some cars have motor generators installed that function as the driving and regeneration units.
- Internal combustion engine (spark-ignited): In this setup, air, and fuel are mixed via injection into the intake manifold or combustion chamber. A spark plug is used to ignite the fuel/air mixture.
- DC/DC converter: This gadget transforms the traction battery pack’s higher-voltage DC power into the lower-voltage DC electricity required to operate car accessories and replenish the auxiliary battery.
- Exhaust system: The exhaust system transfers waste gases from the engine toward the exhaust pipe. The three-way catalyst in the exhaust system is designed to reduce engine-out emissions.
- Gasoline filler: To fill an automobile’s tank, a gasoline dispenser’s nozzle is fixed to the container.
- Tank for gasoline: This container retains gasoline within the vehicle until the engine needs it.
- Power electronics controller: This device controls the flow of electrical energy from the traction battery to control the speed and torque output of the electric traction motor.
- Thermal system (cooling): The engine, electric motor, power electronics, and other components are kept within the proper operating temperature range by the thermal system (cooling).
- Traction battery pack: The traction battery pack stores electricity for use by the electric traction motor.
- Transmission: The transmission uses either an electric traction motor or engine energy to mechanically drive the wheels.
- On-board charger: To charge the traction battery, the onboard charger converts incoming AC power from the charging port into DC electricity. In addition to communicating with the charging device, the pack monitors voltage, current, temperature, and charge level as it is being charged.

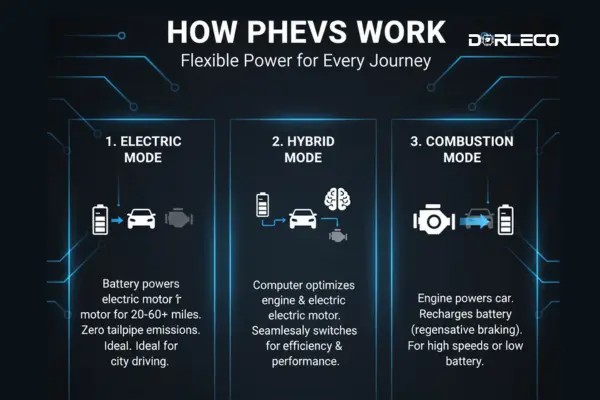

How Do Plug-In Hybrid Electric Cars Work?
It’s simple: after filling up the car with gasoline or diesel as usual (most plug-in hybrid electric cars run on gasoline; don’t ask us why), you plug it in using a designated socket and cable once you arrive home.
Most people install an external home charging device, often called a wall box, in their garage or house to make this possible, while some get by with an extension cord. At all times, stay away from it.
The car may drive without using the engine at all for a predetermined period after the battery is fully charged. Depending on the type, you can often drive 20 to 60 miles on a full battery; however, the manufacturer states on paper that you can travel about a third less.
The majority of PHEVs have three modes: combustion, hybrid, and electric. You can store your charge in combustion mode until you need it, and when you drive in hybrid mode, the engine and battery power are used as efficiently as possible.
When the car is in E-mode, it is forced to use just the battery’s energy until it runs out. This might be quite helpful if you’re traveling to an urban area and don’t want the residents to breathe in your exhaust emissions—you are a considerate person.
A plug-in hybrid electric vehicle’s motor or motors are powered by the battery when it is operating in electric mode. Some require the engine to step in and help over a certain speed, while others may drive alone up to highway speeds.
In hybrid mode, a computer decides when to utilize the engine and motor most efficiently, often alternating between them or using both at once. All you have to do is drive normally here. The best PHEVs will seamlessly integrate the two power sources such that, when driving, you won’t even notice the difference.
The battery-stored electricity powers the motor or motors of a plug-in hybrid electric vehicle (PHEV) when it is in electric mode. Some can drive alone until they reach motorway speeds, but after that, the engine has to step in and help.
When you drive in hybrid mode, a computer decides when it is best to use the engine and motor, often alternating between them or using both at once. Here, you just need to drive normally because the best plug-in hybrid cars (PHEVs) seamlessly integrate the two power sources so you won’t even notice the difference in performance.
What is the duration required for charging?
Again, it depends on the model. While fully electric vehicles typically have batteries that weigh between 10 and 20 kWh, some greatly exceed this range, plug-in hybrid electric vehicles (PHEVs) lack the quick charging technology that allows plug-in vehicles (EVs) to be charged in less than an hour. When you had a full gas tank as a backup that would be overkill.
Expect a minimum of five hours to fully charge a normal 2-3kW household supply. This might sound like a lot, but if you leave your gadget plugged in at work during the day or overnight, it is more than plenty. By using one of the above-mentioned wall boxes, you might cut your top-up power use by up to 7kW.
What else should I know about plug-in hybrids?
Since more technology means more money, they are typically more expensive than their gasoline and diesel counterparts. They will still be more expensive and heavier than non-hybrid vehicles even though they have smaller batteries than electric vehicles. Even a few kilowatt-hours’ worth of cells to carry about is a significant weight.
The inside space is also impacted by the battery. There is typically less space inside for luggage and other objects because the majority of PHEVs store their batteries beneath the back seats and boot.
The most potent versions in their model line-ups are usually found in plug-in hybrid electric vehicles (PHEVs), nevertheless, since the combined power of the engine and motor permits hot-hatch humiliating acceleration.
Conclusion:
Plug-in hybrid electric cars, or PHEVs, offer a potential solution to the challenges associated with making the transition from traditional internal combustion engine vehicles to more environmentally friendly ones.
This analysis demonstrates how plug-in hybrid electric vehicles (PHEVs) offer a distinct set of benefits by fusing the range and convenience of gasoline engines with the efficiency and low emissions of electric power.
Furthermore, consumers who may be hesitant to completely commit to electric vehicles due to concerns about range anxiety or the accessibility of charging infrastructure have a transitional choice in PHEVs. This contributes to the decreasing difference between completely electric and conventional automobiles.
With the ability to transition between electric and hybrid modes, plug-in hybrid electric vehicles (PHEVs) are a practical solution that can accelerate the adoption of electric drivetrains and pave the way for a more sustainable transportation future.
In conclusion, even though they might not be the ideal solution to every transportation issue, plug-in hybrid electric vehicles (PHEVs) unquestionably offer a compelling combination of benefits that make them a valuable transitional technology in the path toward a greener and more efficient mobility ecosystem.
Future transportation planning could be greatly impacted by PHEVs as public attitudes toward sustainability shift and technology progress.
